Raised Floor Plenum Design for Data Centers: Height, Airflow & Cooling Guide (2026)

The raised floor plenum is the foundational airflow delivery mechanism in the majority of enterprise data centers worldwide. This pressurized air space beneath the access floor panels distributes chilled air from perimeter or in-row cooling units to server racks through perforated floor tiles — without a single foot of supply ductwork. Yet poorly designed plenums waste 30-50% of cooling capacity through air bypass, pressure imbalances, and cable obstructions. This guide covers raised floor plenum design for data centers: floor height selection, CFM calculations, airflow modeling, cable management, sealing strategies, and how the data center raised floor plenum compares to overhead ducted cooling.

1. What Is a Raised Floor Plenum?

A raised floor plenum is the open air chamber formed between a data center's structural concrete slab and the elevated access floor panels above it. The access floor — a grid of removable 600 x 600 mm (2 x 2 ft) or 610 x 610 mm (24 x 24 in) panels supported on adjustable steel pedestals — creates a continuous void that functions as a pressurized supply air distribution plenum.

Computer room air conditioners (CRACs) or computer room air handlers (CRAHs) discharge chilled air (typically 55-65°F / 13-18°C) downward into this void. The air spreads laterally across the plenum floor area at low velocity (200-500 fpm) and rises through strategically placed perforated floor tiles into the cold aisles between server rack rows. The servers draw this cold air through their front intakes, reject heat through their rear exhausts, and the hot air (85-105°F / 29-41°C) returns to the cooling units — completing the cycle.

This approach is classified as underfloor air distribution (UFAD), and it has been the dominant data center cooling architecture since the 1970s. The concept is elegant: the entire floor area acts as a massive low-velocity duct, allowing flexible tile placement to match any rack layout without modifying ductwork. However, the simplicity is deceptive — getting uniform airflow distribution across a 10,000+ sq ft data hall is an engineering challenge that demands careful attention to plenum height, obstruction management, pressure balancing, and tile selection.

2. Why the Plenum Is the Most Critical Airflow Element

The data center raised floor plenum is not just empty space under the floor — it is the primary air distribution duct for the entire facility. Every CFM of cooling air passes through this volume before reaching the IT equipment. Any inefficiency in the plenum directly reduces cooling capacity and increases energy consumption.

Industry measurements consistently show that poorly managed plenums waste 30-50% of delivered cooling capacity through three mechanisms:

• Bypass airflow (40-60% of waste): Chilled air escaping through cable cutouts, unsealed tile edges, perimeter gaps, and unused floor openings. This air never reaches server intakes — it goes directly to the hot aisle or ceiling return, mixing with exhaust air.
• Recirculation (20-30% of waste): Hot exhaust air from server rear panels re-entering the cold aisle because there is insufficient cold air supply at that location. This occurs when plenum pressure is uneven due to obstructions or distance from the cooling unit.
• Short-circuiting (10-20% of waste): Cold supply air returning directly to the cooling unit intake without passing through any IT equipment, typically through open areas or tiles positioned near the CRAH return.

A 2023 study by the Uptime Institute found that data center operators who optimized their underfloor plenum — by sealing cutouts, managing cable routing, and rebalancing tiles — recovered an average of 15-25% cooling capacity without adding any new cooling equipment. For a facility spending $500,000/year on cooling energy, that represents $75,000-$125,000 in annual savings.

3. Floor Height Selection: Sizing by Rack Density

The height of the raised floor plenum directly determines its air-carrying capacity. A taller plenum has a larger cross-sectional area, which means lower air velocity for any given CFM volume — resulting in more uniform pressure distribution and less resistance from underfloor obstructions. ASHRAE guidelines and TIA-942 (Telecommunications Infrastructure Standard for Data Centers) provide the following recommendations:

Key insight from research: Numerical studies published in HVAC&R Research show that plenum heights of 762 mm (30 in) or greater produce the most uniform airflow rates through perforated tiles, with tile-to-tile variation dropping below 15%. At 300 mm (12 in), tile-to-tile CFM variation can exceed 40%, meaning some racks get adequate cooling while others overheat — a critical reliability risk.

Obstruction rule: ASHRAE recommends that underfloor obstructions (cable trays, chilled water pipes, power conduits) occupy no more than one-third of the plenum height. For a 610 mm (24 in) plenum, cable trays and pipes must stay below 200 mm (8 in) total obstruction height. Exceeding this ratio creates localized velocity spikes that starve downstream tiles.

4. Airflow Design: CFM Calculations & Tile Layout

Proper raised floor plenum design starts with calculating the total CFM requirement and then mapping it to perforated tile placement. The fundamental formula:

CFM per rack = (Rack kW × 3,412 BTU/hr per kW) ÷ (1.08 × ΔT)

Where ΔT is the temperature difference between supply air and return air. At a standard 20°F (11°C) ΔT:

• 5 kW rack: (5 × 3,412) / (1.08 × 20) = 789 CFM
• 10 kW rack: (10 × 3,412) / (1.08 × 20) = 1,579 CFM
• 20 kW rack: (20 × 3,412) / (1.08 × 20) = 3,157 CFM
• 30 kW rack: (30 × 3,412) / (1.08 × 20) = 4,736 CFM

A standard 600 x 600 mm perforated tile with 25% open area delivers approximately 500-650 CFM at typical plenum pressures (0.05-0.10 in. w.g.). High-airflow directional tiles with 56% open area can deliver up to 1,900 CFM per tile. The tile layout rule:

Tiles per rack = CFM per rack ÷ CFM per tile

Design best practice: Place perforated tiles exclusively in the cold aisle, directly in front of server rack intakes. Never place perforated tiles in the hot aisle — this creates bypass airflow where chilled air goes directly to the hot side without cooling any equipment. Position tiles within 1-2 tile widths of the rack face for minimum throw distance. For high-density racks (>15 kW), use directional tiles angled toward the rack intakes.

5. Cold Aisle / Hot Aisle Containment Integration

Containment is the single most effective improvement to a data center raised floor plenum cooling system. Without containment, hot exhaust air from server rears mixes freely with cold supply air in the room, raising inlet temperatures by 5-15°F and reducing effective cooling capacity by 20-40%.

Cold Aisle Containment (CAC)

CAC encloses the cold aisle with end-of-row doors and a ceiling (either hard panels or strip curtains) between rack rows. The raised floor plenum pressurizes the cold aisle through perforated tiles, and the containment prevents hot air from entering. Cold supply air is trapped at the rack inlets at the designed temperature (typically 68-72°F / 20-22°C). Hot exhaust air mixes freely in the room above and around the containment, returning to CRAH intakes at mixed temperature.

Hot Aisle Containment (HAC)

HAC encloses the hot aisle with doors and a ceiling, capturing exhaust air (85-105°F / 29-41°C) and ducting it directly back to cooling unit return intakes — either through overhead return ducts or a ceiling return plenum. HAC is 5-10°F more efficient than CAC because the return air is hotter and unmixed, allowing the cooling units to operate at higher efficiency (higher ΔT). HAC with a raised floor supply plenum is the gold standard for air-cooled data centers up to 15-20 kW per rack.

Plenum pressure with containment: Containment systems increase the required plenum static pressure because the perforated tiles must overcome the resistance of the sealed aisle. Target plenum pressure of 0.05-0.08 in. w.g. with CAC and 0.03-0.06 in. w.g. with HAC (the hot aisle enclosure reduces back-pressure on the cold side).

6. Sealing, Cable Management & Bypass Air

Bypass air — chilled air that escapes the plenum without passing through server equipment — is the number one efficiency killer in raised floor data centers. Field audits consistently find that 30-60% of air leaving the floor plenum is bypass air. The primary leakage paths:

Cable Cutouts

Floor tile cutouts for power cables, network cables, and fiber runs are the largest single source of bypass air. Each unsealed cutout can leak 100-500 CFM — equivalent to losing an entire perforated tile's worth of cooling. In a data center with 500 cable cutouts, the total leakage can exceed 50,000 CFM, representing 15-25% of total cooling capacity.

Fix: Install brush grommets (KoldLok-style) on every cable penetration. Use foam-in-place gaskets for irregular openings. Plug all unused cutouts with solid blanking plates. A complete cable cutout sealing program typically recovers 10-30% of cooling capacity — often the single highest-ROI data center improvement project.

Perimeter Gaps

The junction between the raised floor edge and perimeter walls is a common leakage path. Air escapes into wall cavities, under doors, and into adjacent spaces. Seal the perimeter with flexible gasket strips or spray foam. Pay special attention to where the raised floor meets corridor walls, loading dock walls, and exterior walls.

Unused Floor Tile Openings

Decommissioned racks often leave orphaned perforated tiles or open cutouts in the floor. These dump chilled air into empty space. Replace unused perforated tiles with solid tiles. Maintain a tile inventory and audit monthly.

7. CFD Modeling for Plenum Optimization

Computational Fluid Dynamics (CFD) simulation is the gold standard for raised floor plenum design validation. CFD models the 3D airflow patterns inside the plenum and throughout the data hall, predicting:

• Pressure distribution across the plenum floor area
• CFM delivery through each perforated tile
• Hot spots at rack inlets where supply air is insufficient
• Impact of underfloor obstructions (cable trays, pipes) on airflow
• Optimal tile placement for uniform cooling

When to use CFD: Any new data center build over 5,000 sq ft, any facility planning to increase rack density above 8 kW, and any site experiencing hot spots or cooling capacity complaints. CFD modeling costs $10,000-$50,000 depending on facility size, but it typically identifies 15-30% capacity improvements that justify the investment many times over.

Key CFD inputs for plenum modeling: Plenum height and geometry, pedestal layout, cable tray locations and heights (from as-built drawings), pipe routing, cooling unit discharge locations and CFM, tile open areas and positions, rack power loads by location, and containment configuration. The model should include the full plenum volume plus the above-floor data hall to capture recirculation effects.

8. Raised Floor Plenum vs Overhead Ducted Cooling

The choice between underfloor plenum and overhead ducted cooling is one of the most consequential data center design decisions. Both architectures have mature implementations, and neither is universally superior — the right choice depends on rack density, facility type, and operational model.

The industry trend: Enterprise and colocation data centers (which make up the majority of facilities worldwide) continue to use raised floor plenums due to flexibility and the installed base. Hyperscale operators (Google, Meta, Microsoft, Amazon) have largely moved to slab-floor designs with overhead or in-row cooling because they control the entire facility and optimize for maximum density. The data center underfloor plenum is not obsolete — it is evolving. Modern facilities combine raised floor plenums with hot aisle containment and supplemental in-row cooling to handle mixed-density environments where 5 kW racks coexist with 30 kW AI pods.

For a deeper dive into data center cooling architectures including overhead and liquid cooling systems, see our Data Center HVAC Cooling Guide and Data Center Ducting & Cooling Design.

9. Key Components & Materials

A well-functioning data center raised floor plenum system requires several categories of HVAC components working together:

Underfloor Dampers and Air Distribution

Volume control dampers installed beneath the raised floor regulate airflow to specific zones. Motorized dampers connected to Building Management Systems (BMS) can dynamically adjust plenum pressure by zone — critical in facilities with variable IT loads. Underfloor plenum boxes are used where CRAH discharge needs to transition from large rectangular outlets to the open plenum space, ensuring even air distribution at the discharge point.

Floor Tile Systems

Perforated tiles come in multiple open-area percentages (15%, 25%, 40%, 56%) and materials (cast aluminum, stamped steel, wood-core with steel face). Solid tiles fill non-cooling areas. Grommet tiles with sealed cable openings serve rack positions. The tile grid and pedestal system must meet minimum load ratings: 7.2 kPa (150 psf) minimum per TIA-942, with 12 kPa (250 psf) recommended for facilities housing heavy equipment.

Sealing and Gasket Materials

Brush grommets for cable penetrations. Perimeter gasket strips (EPDM or neoprene) for floor-to-wall junctions. Tile edge gaskets to reduce inter-tile leakage. Foam-in-place sealant for irregular penetrations. All materials in the underfloor plenum must meet NFPA 75 (Standard for the Fire Protection of Information Technology Equipment) and local fire codes — typically requiring materials with a flame spread index of 25 or less per ASTM E84.

10. Sourcing Underfloor Plenum Components from Airwise

Data center cooling projects require precision-fabricated HVAC components that meet strict dimensional tolerances and fire safety requirements. Airwise manufactures the following components used in raised floor plenum installations:

• Plenum boxes and transition plenums — Custom-fabricated galvanized steel plenums that transition CRAH discharge into underfloor distribution. Available in standard and custom sizes, insulated or uninsulated.
• Volume control dampers — Manual and motorized dampers for zone airflow regulation within the raised floor plenum. Compatible with BMS integration for dynamic control.
• Perforated grilles and diffusers — Aluminum and steel grilles with precise open-area percentages for underfloor air distribution applications.
• Spiral duct and fittings — For overhead return duct routing in hot aisle containment configurations.

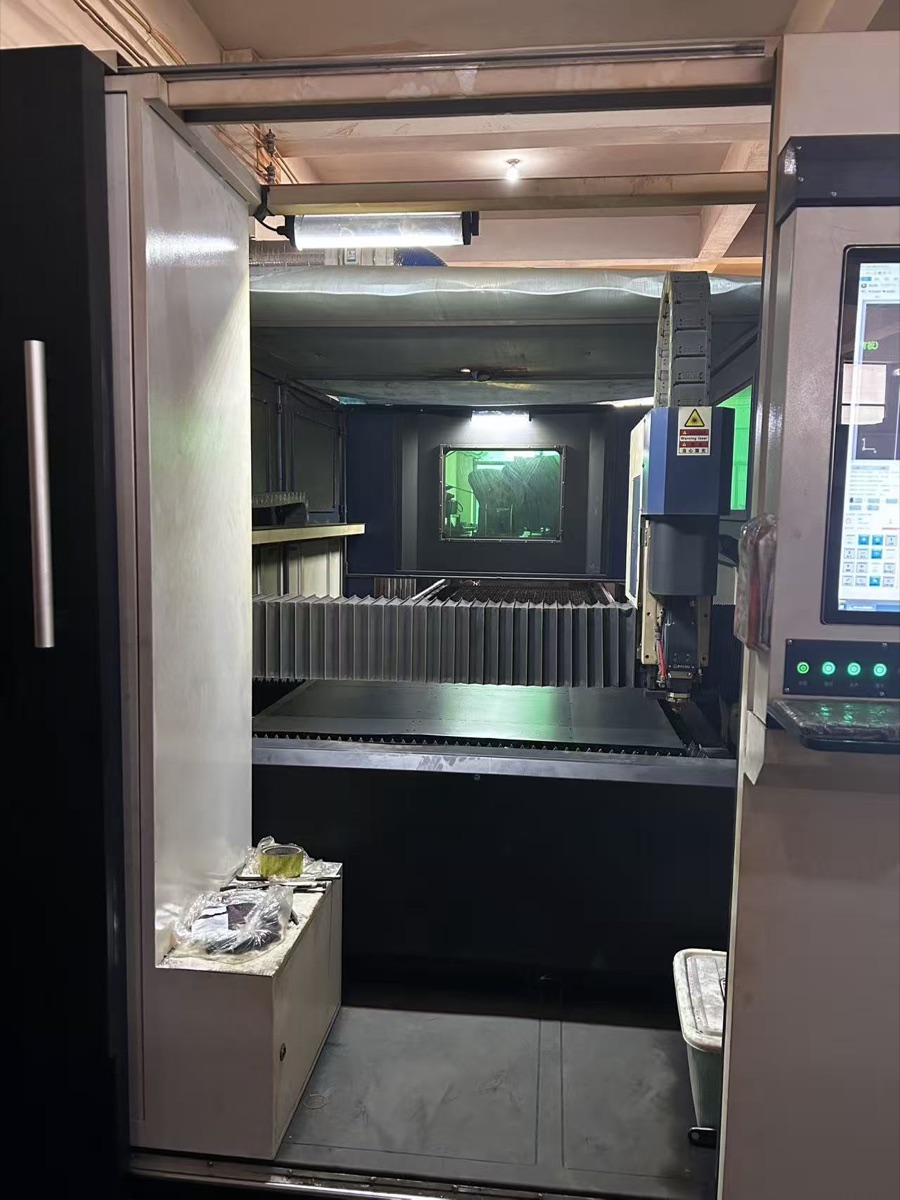

All components are manufactured from galvanized steel (G60/G90) at our Dongyang, China facility, with a secondary facility in Houston, TX. Standard lead time is 15-25 business days for catalog items; custom fabrication is 30-45 days with a 500 pc minimum order. We support data center projects from single-room enterprise facilities to multi-megawatt hyperscale builds.

Request a quote for data center HVAC components
