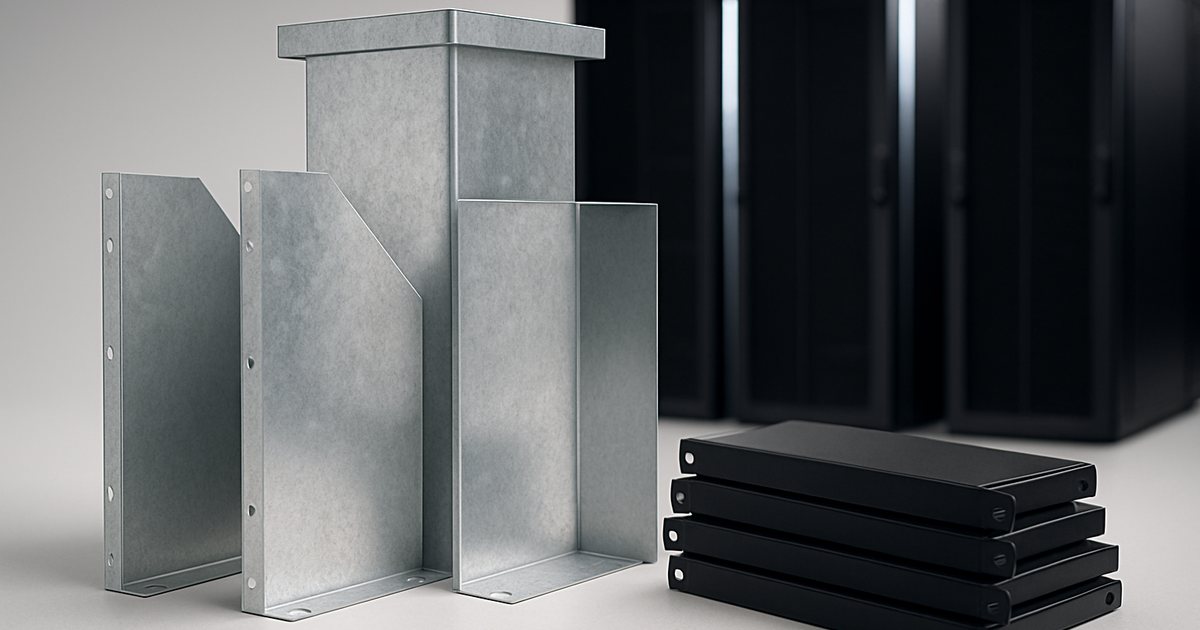

Custom Air Baffles & Air Plenums for Server Racks: Specs, Materials & OEM Sourcing

1. The Two Airflow Problems Baffles Actually Solve

Strip away the marketing and every piece of rack airflow hardware exists to fix one of two failures. Understanding which one you have determines what you should buy — and we see plenty of projects where the wrong one was bought.

Failure 1 — bypass air. Cold supply air reaches the return without ever passing through a server. It short-circuits through open U slots, through the vertical gaps between the rack rails and the cabinet side panels, through unsealed floor cutouts, and around the ends of a row. The cooling plant works, the CRAC return temperature reads low, and yet racks run hot. This is a sealing problem, and blanking panels plus gap seals fix it.

Failure 2 — recirculation. Hot exhaust air finds its way back to an equipment intake. The classic case is over the top of a rack or around its ends, but the version that actually generates most of our custom baffle enquiries is far more local: a side-breathing chassis discharging its exhaust directly into the intake of the device mounted next to it, inside the same cabinet. This is a redirection problem, and only a formed baffle or plenum fixes it — blanking panels do nothing here.

Air is not clever. It follows the path of least resistance, and a server chassis with fans, heatsinks and a filter presents dramatically more pressure drop than an open 1U hole. That single sentence explains most of what follows.

2. Side-Breathing Network Gear in Front-to-Back Racks

The modern data center cabinet is built on one assumption: air enters the front, passes through the equipment, and leaves the back. Hot aisle/cold aisle containment, floor tile placement and CFD models all depend on it.

A large amount of network hardware does not comply. Many switches and integrated services routers — chassis in the general class of the Cisco 4000-series ISRs, and a great deal of telecom and carrier-edge equipment — draw air in through one side of the chassis and exhaust it out the other, or out the side and rear. Cisco's own installation guidance for the 4000 Series ISRs specifies a 0-40°C steady-state operating range and asks for at least one rack unit of vertical space between routers, plus louvered sides and forced ventilation on enclosed racks — which tells you the chassis is relying on the cabinet, not on itself, to get air where it needs to go.

Put two of these side by side in a 19" cabinet and one of them is inhaling the other's exhaust. Put one in a contained cold aisle and its exhaust dumps straight back into the cold aisle it is supposed to be protecting. Neither is a design you can fix by moving air harder.

The fix is a fabricated baffle set that captures the side exhaust window and turns it 90° to the rear, usually combined with an intake baffle on the opposite side that draws from the cold aisle rather than from the cabinet interior. On deeper or heavier chassis this becomes a full side plenum: an enclosed duct running the depth of the cabinet, bolted to the rack rails or the cabinet frame, with a gasketed collar around the chassis vent.

Because the vent window position, chassis depth and rail-to-side-panel clearance differ on every model, this hardware is never a catalogue item. That is not a sales position — it is geometry.

3. Types of Rack Airflow Hardware

These terms get used interchangeably in RFQs, which causes real quoting errors. Here is how we classify them on the shop floor:

Note the pattern: everything above the blanking panel line is made to order. Rack airflow is one of the few areas of building services where the sheet metal has to mate to a manufactured product rather than to other sheet metal, and manufactured products do not share a dimensional standard beyond the 19" rail spacing itself.

4. Material Selection: FR Plastic vs Sheet Metal

This is the decision that most often gets made badly, usually by defaulting to whatever the last supplier used.

Flame-retardant polypropylene (UL 94 V-0)

FR polypropylene is the standard for baffles that sit inside a chassis or in direct contact with energised components. It is available with a UL 94 V-0 rating across a full thickness range from 0.005" to 0.125" (0.13-3.2 mm), it is a dielectric so it will not create a short where it touches a board or a busbar, it weighs almost nothing, and it can be die cut, laser cut, water-jet cut or CNC routed and then heat-formed into shape without hard tooling.

Its limit is thermal. FR-grade polypropylene begins to soften and deform in the region of 200°F (93°C). That is comfortably above a normal server exhaust plume, but it is not above a stalled-fan condition or a dense GPU chassis discharge, and a deformed baffle that sags into a fan intake is worse than no baffle. If the part will see sustained direct exhaust from high-density equipment, move to metal.

Galvanised steel and 5052 aluminium

For anything that has to hold its own shape across a span, carry a gasket line, or be earthed, we use sheet metal:

One finishing point that matters more than it sounds: rack plenums live in the white space where customers and auditors walk. We powder-coat to RAL 9005 black or match the cabinet colour, and we hem or roll every exposed edge — not for looks alone, but because a technician reaching into a cabinet should not meet a raw sheared edge. This is the same finishing standard we apply to architectural laser-cut registers.

5. Blanking Panels: The Cheapest Fix Nobody Finishes

Blanking panels are the lowest-cost item in this entire article and the most commonly half-installed. The typical site has the big empty block at the bottom of the rack covered and every 1U gap between equipment left open.

That is not a minor omission. In a contained cold aisle the whole design rests on the assumption that every cubic foot of supply air is forced through a server before it can reach the return. An open U breaks that assumption — it is a shortcut, and air takes it. ASHRAE TC 9.9 lists blanking panels among the fundamental airflow strategies for exactly this reason.

Three things to get right when you specify them:

• Solid, not vented, unless you have a reason. Non-vented panels block airflow completely and are correct for the overwhelming majority of installations. Vented panels exist for specific thermal cases — such as deliberately feeding a side-breathing chassis — and should be a conscious choice, not a default.
• Tool-less snap fitting. A panel that needs cage nuts and screws will not get reinstalled after the next equipment move. Snap-in designs survive churn; screwed panels quietly disappear.
• Blank the plane, then seal the sides, then seal the floor. Doing only step one gets you perhaps half the available benefit. The vertical channel between the rack rails and cabinet side panels is frequently a larger aperture than all the open U combined.

For a full building-side view of how this connects to the room's return path, see our data center HVAC ducting and plenum guide.

6. Rack Air Plenums, Chimneys & Roof Adapters

Once exhaust is redirected, it has to go somewhere. Rack air plenums are the hardware that gets it there — and the category where dimensional accuracy stops being a nicety.

Rack-top exhaust chimneys

A chimney connects the cabinet roof to a ceiling return plenum, taking hot exhaust out of the room entirely rather than letting it mix. Two specification points drive the price: whether it is telescopic (adjustable height to accommodate slab and ceiling variation on site — almost always worth it, because as-built ceiling heights vary by 30-80 mm across a real room) and whether the roof interface is gasketed. A chimney that terminates in a ceiling plenum must be metal, for the code reason set out in section 8.

Rear collector plenums

A formed box mounted on the rear of the cabinet that gathers the exhaust from all mounted equipment into a single controlled outlet, typically feeding a ducted return or a chimney. Design point: the collector must not add enough static pressure to fight the equipment fans. We size the outlet so that the face velocity through it stays below roughly 1,000 FPM at design flow, which for a 5 kW cabinet at a 12°C (~21°F) rise works out to a plenum outlet in the region of 700-800 CFM. Same arithmetic as any air distribution plenum, applied to a cabinet.

Roof adapters and transitions

The quiet workhorse: a rectangular cabinet cutout meeting a round spiral duct, an offset between a cabinet centreline and a duct drop, a reducer between a 600 mm cabinet and a 400 mm return. Conceptually identical to a duct transition fitting, but held to a tighter interface tolerance because it bolts to a manufactured cabinet.

Row bridge sections

Modular bolted sections that link several cabinet exhaust interfaces into a shared overhead path. These are quoted per row layout and are the one item in this list where we ask for a reflected ceiling plan, not just a cabinet drawing.

7. How to Specify a Custom Baffle — RFQ Checklist

Roughly two-thirds of the baffle enquiries we receive cannot be quoted as sent. Here is everything we need, in the order we need it:

1. Equipment model and airflow direction. Side-to-side, side-to-rear, front-to-back, or rear-to-front. If the chassis has a selectable fan tray orientation, tell us which one is installed.
2. Chassis dimensions — rack units, depth, and the position and size of the vent window measured from a fixed datum (usually the front rail face).
3. Cabinet interface. Rail standard (EIA-310-E 19", ETSI or WECO 23", or a custom frame), interior width, interior depth, rail-to-side-panel clearance, and whether it is a 2-post or 4-post frame. The 2-post versus 4-post distinction changes the whole mounting strategy on heavy chassis.
4. Mounting method. Cage nut, rivet, magnetic, tool-less clip, or bolted to the cabinet frame.
5. Material and finish — or tell us the thermal environment and let us recommend. Include the powder coat colour if it is visible.
6. Fire/code requirements. Specifically: does this part sit in a space classified as a plenum? This single answer can rule out plastic entirely.
7. Drawing, 3D model, or physical sample. A DXF or STEP file is fastest. A sample works — we reverse-engineer and return a drawing for approval. Photos with a scale reference are enough to get a budgetary number.
8. Quantity and phasing. First-article quantity, total programme volume, and whether this is a one-off retrofit or a repeating build.

Items 1, 3 and 7 are the ones that block quotes. If you send nothing else, send those.

8. Codes & Standards

Three documents govern most of what you can and cannot install:

The trap worth naming: UL 94 V-0 and NFPA 90A plenum compliance are not the same thing and are not interchangeable. V-0 is a small vertical burn test on a plastic specimen. NFPA 90A calls for ASTM E84 tunnel-test performance for materials in a plenum space. A V-0 polypropylene baffle can be entirely appropriate inside a chassis and still be unacceptable to an inspector inside a ceiling return plenum. When a part crosses into plenum space — a rack-top chimney is the obvious case — we specify galvanised steel and remove the argument. Same logic we apply to fire and smoke damper selection at rated penetrations.

One more, because it comes up on every retrofit: if the chimney passes through a fire-rated ceiling or floor assembly, a listed fire damper is required at the penetration, and the damper's listing must match the assembly's rating. That is not something a plenum fabricator can waive.

9. How We Manufacture Them — MOQ, Lead Time, Tolerances

Airwise is the export brand of 东阳市胡氏利达管业有限公司 — a 5,000 m² sheet metal and HVAC component plant in Dongyang, Zhejiang, in operation since 1996, with a 4,300 m² facility in Houston, TX for North American stock and finishing. Rack airflow hardware runs on the same CNC laser cutting and press-brake line as our plenum boxes and accessories.

The route for a custom baffle or plenum:

1. Drawing or reverse engineering — 2-4 days from a sample, same day from a DXF/STEP file.
2. CNC laser cutting — flat blank cut from galvanised, aluminium or stainless sheet. No tooling cost, which is why 50-100 piece runs are viable.
3. Press-brake forming — bends held to ±0.5 mm on the interface face, ±1.0 mm elsewhere. Ductwork norms of ±1.5 mm are not good enough where the part bolts to a cabinet.
4. Welding / riveting and gasketing — closed-cell EPDM or PE foam gasket on all mating faces.
5. Powder coating — RAL 9005 black standard, custom colours available (note that colour changeover on the coating line raises MOQ).
6. First article approval — we ship one before the run. Non-negotiable on chassis-specific work, because a 0.5 mm error on the vent collar makes the whole batch scrap.

Certifications held: UL Listed, CE, M1 (France), ROSH, AWTA (Australia). Material certificates and mill test reports are available on request for steel and aluminium; UL 94 listings come from the resin supplier for plastic parts.

If you are evaluating suppliers more broadly, our guide to sourcing HVAC parts from China covers factory verification, payment terms and quality control on custom sheet metal programmes.

Send us a drawing or sample for a quote
